Silk Choke


SILK DC CHOKE with PRECISION AIR GAP








- Guarantee Inductance and current capability
- Hi-Grade Silicon Streel
- Precision Air Gap
- Low Loss Copper Wire
- Hi-Voltage Insulation
- Potting is available upon request. (multiple coils etc.)
- Custom Winding Available, if you do not see what you want, please send us an email at info@sacthailand.com



  Air-Gap DC Choke
C-input series
Model
Inductance at 100Hz
Current
DCR
Price (THB)
CH-1
5H
250mA
74
1,600
CH-2
10H
150mA
140
1,950
CH-3
3H
300mA
46
1,950
CH-4
1.5H
400mA
12
1,600
CH-5
10H
200mA
115
2,800
CH-6
5H
300mA
65
2,400
CH-7
10H
300mA
approx 100
3,600
CH-8
25H
50mA
353
1,600
CH-9
30H
40mA
680
1,600
CH-10
40H
20mA
approx 600
1,950

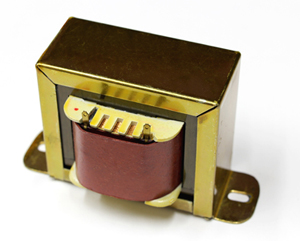

  ***Price for U-Bracket or Black belt-end cover

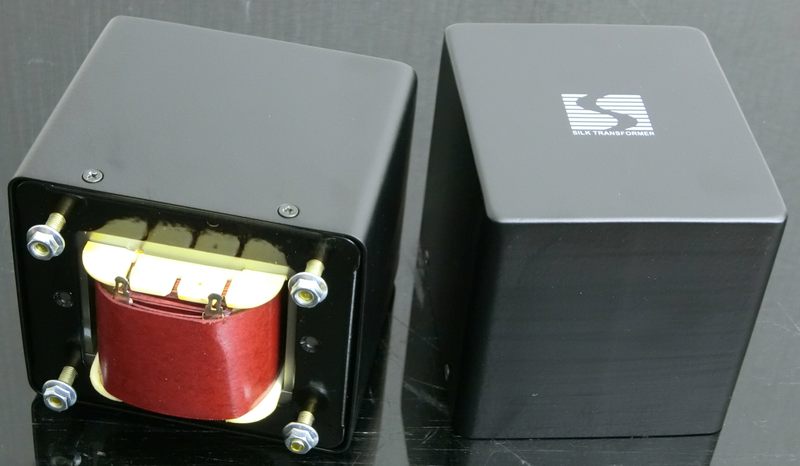

Potted Size: 6.5 cm x 7 cm x 9.5 cm adds 600THB(Weight : 1.5-2 kg)
Potted Size : 9.5 cm x 11 cm x 9.5 cm adds 900THB (Weight : 3-3.5 kg)

  Air-Gap DC Choke
L-input series
Model
Inductance at 100Hz
Current
Max AC input voltage
Price (THB)
CH-1L
5H
300mA

4,200
CH-2L
10H
200mA

4,200
CH-3L
20H
150mA

4,200

  ***Potted Size: 9.5 cm x 11 cm x 9.5 cm (Weight : 3-3.5 kg)
