Capacitor

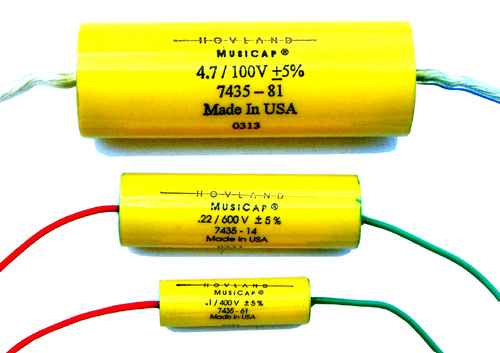

Hovland MusiCap

Features

- MusiCaps deliver exceptional dynamics, speed, focus, correct timbre and depth of field, and true inter-transient silence.
- Separate layers of polypropylene film & conductive foil deliver superior clarity that metalized capacitors can not.
- Custom stranded silver-plated copper leads-no copper oxidation to degrade the music.
- 1000V Teflon insulation on coupling MusiCaps 22 gauge leads. Large 16 gauge, stranded, silver-plated copper leads on speaker Musicaps.
- Lead-free silver-bearing solder used in tinning and attachment of leads.
- Usually less than 1% tolerances. Manufactured entirely in U.S.A.
- Hand soldered lead termination.
- Extremely low DA, DF and ESR.
- 100% pre-testing for quality assurance.
- Consistent, even, winding tension assures freedom from microphonics.
- A single capacitor = a singular sound -no time smear from multiple sections.
- Value to value sonic consistency that is not found in other capacitors - regardless of price.

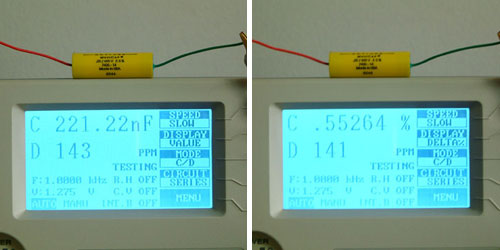

Hovland Musicap 0.22uF/600V Capacitor
Dissipation factor "D" of only 143ppm and torelance of only 0.55%

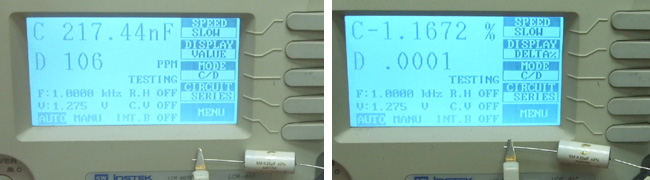

Kimber 0.22uF/600V Capacitor
See and judge for yourself. This is typical performance for all Metallized capacitor which has very thin conductor (micron thickness) inside.

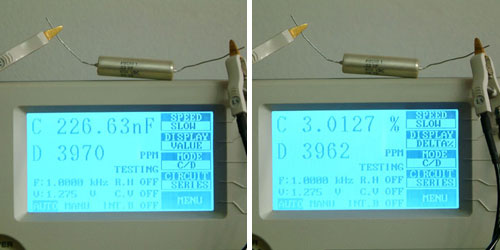

Sprague Paper in oil 0.22uF/630V Capacitor
Of course paper in oil capacitor offers "DIFFERENT" sound. Since it has so high D factor (almost 4,000ppm!) and usually does not have precise value.


  Coupling Capacitors-Film & Foil Polypropylene
The best coupling capacitor available to the market.


Value
Max DC Voltage
Physical Size (inch)
Price (THB)/Ea
0.1uF
400
0.41 x 1.28
380
0.1uF
600
0.50 x 1.75
500
0.22uF
400
0.55 x 1.50
500
0.22uF
600
0.62 x 2.00
630
0.33uF
600
0.75 x 2.25
790
0.47uF
400
0.59 x 2.00
650
0.47uF
600
0.80 x 2.50
940
0.68 uF
400
0.70 x 2.00
760
1.0uF
400
0.68 x 2.00
980
2.0uF
400
0.98 x 3.00
1,230
3.0uF
200
0.92 x 2.88
1,210
4.0uF
400
1.06 x 3.32
1,580


  Speaker Capacitors-Film & Foil Polypropylene
Exceptional pulse behavior and capable to work with low loading impedance (usually few ohms of loudspeaker driver)


Value
Max DC Voltage
Physical Size (inch)
Price (THB)/Ea
1.5uF
100
0.70 x 2.00
900
2.2uF
100
0.75 x 2.25
1,050
3.3uF
100
0.82 x 2.88
1,210
4.7uF
100
0.92 x 2.88
1,370
6.0uF
100
1.06 x 3.32
1,530
8.0uF
100
1.29 x 3.32
1,820
10.0uF
100
1.45 x 3.32
2,100
