AMPLIFIER

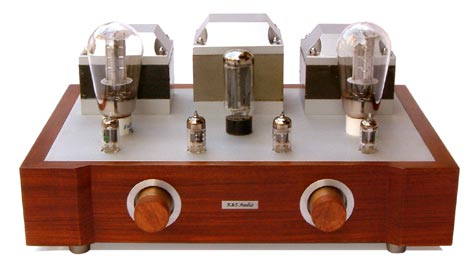

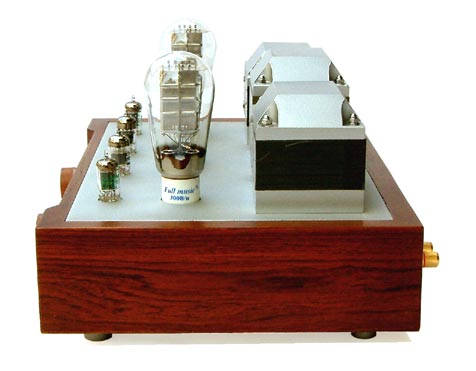

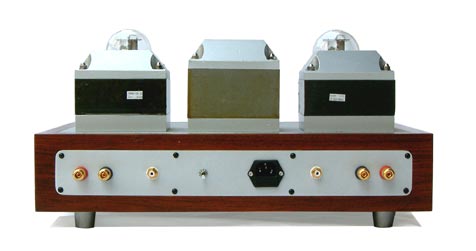

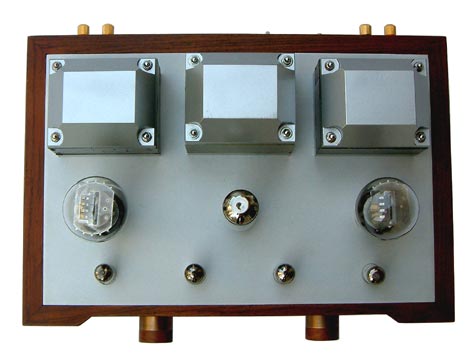

Integrated 300B



SAC Thailand is proudly present one of its best Integrated 300B Power Amplifier at amazing low price! This Integrated 300B shares unique and outstanding hi-end features as the big brothers (Solaris) for example: Handcrafted solid hard wood chassis with thick aluminum top plate, solid brass/wood knobs, SILK handmade Output Transformers, SILK Power Transformer/Choke, ALPS Selector, ALPS Volume Control, Kiwame Carbon Film Resistor, Hovland Film-Foil Capacitor and high quality Choke Power Supply.
Under Solid Chassis you will find elaborate hard wiring that through time prove to be the best method of connection both in term of durability and sonic improvement over PCB connection.

This Integrated 300B operates in Single Ended Class A mode without signal correction of Global Negative Feedback to allow the smooth, natural and transparent sound. The circuit is developed around the SILK Output Transformer to maximize smooth frequency response and minimize THD and noise that usually occur when incompatible parts are hosted together. The circuit is simple but not too simple.
All brew down to a very beautiful sounding 8 watts RMS SE Integrated Amplifier that will drive most of loudspeakers in the market today

Specification

Product Type:
Stereo Vacuum Tube 300B Power Amplifier
Pre-Amp/Input Tubes:
6N1P x 2
Driver Tubes:
5687 x 2
Output Tubes:
Full Music TJ300B x 2
Rectifying Tubes:
5U4G x 1
Coupling Capacitors:
Hovland Musicap
Output Transformer:
3K EI core 20 watts power handling - Audio Note
Output Power:
8 watts/CH class A1 design, 12 watts peak power
Frequency Response:
20-35,000Hz (-3dB)
THD:
5% at rated power
S/N ratio:
below 80dB
Size:
(W) 48 x (D) 32 x (H) 25 cm.
Weight:
Approx 25 kg.
Direct From Factory Price :
Please Contact.
