AMPLIFIER

Integrated 300B with Remote Control

Completely select 3 input sources and volume control via infared remote control




SAC Thailand is proudly present one of its best Integrated 300B Power Amplifier with remote control at amazing low price! This Integrated 300B shares unique and outstanding hi-end features as the big brothers (Solaris) for example: Handcrafted solid hard wood chassis with thick aluminum top plate, Improved SILK handmade Output Transformers, SILK Power Transformer/Choke, Remote Control Selector and Volume, Kiwame Carbon Film Resistor, Hovland Film-Foil Capacitor and high quality Choke Power Supply.
Under Solid Chassis you will find elaborate hard wiring that through time prove to be the best method of connection both in term of durability and sonic improvement over PCB connection.

This Integrated 300B operates in Single Ended Class A mode without signal correction of Global Negative Feedback to allow the smooth, natural and transparent sound. The circuit is developed around the new improved SILK Output Transformer to maximize smooth frequency response and minimize THD and noise that usually occur when incompatible parts are hosted together. The circuit is simple but not too simple.


All brew down to a very beautiful sounding 8 watts RMS SE Integrated Amplifier that will drive most of loudspeakers in the market today

With our new SILK S-3300 output transformer the amplifier could deliver much better high frequency response up to 80KHz at -3.0dB at full power output generating ultra ambience and detail.

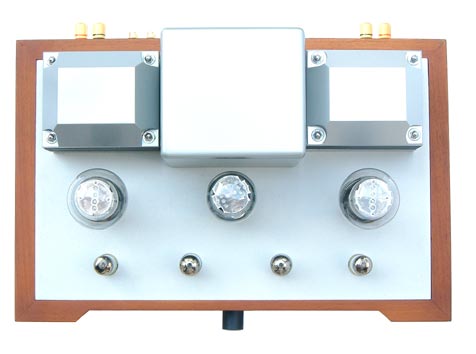

Solid, Simple and Elegant built. Output transformers are covered with solid machined aluminum plate producing outstanding stability and appearance.

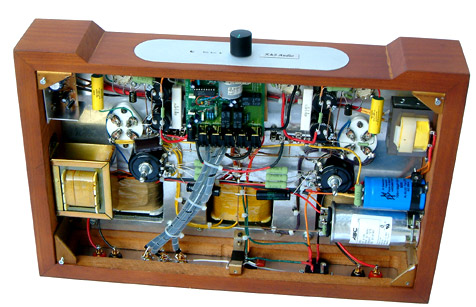

Inside picture shows exclusive point to point wiring that directly joint all parts together to minimize signal lost

Specification
Product Type:
Stereo Vacuum Tube 300B Power Amplifier with Remote Control
Pre-Amp/Input Tubes:
6N1P x 2
Driver Tubes:
5687 x 2
Output Tubes:
300B Electro-Harmonic x 2
Rectifying Tubes:
5U4G x 1
Coupling Capacitors:
Hovland Musicap x 4
Output Transformer:
3K EI core 30 watts power handling - Silk Transformer
Output Power:
8 watts/CH class A1 design, 12 watts peak power
Frequency Response:
15-80,000Hz (-3dB) Guarantee
THD:
5% at rated power
S/N ratio:
below 80dB
Size:
(W) 46 x (D) 30 x (H) 25 cm.
Weight:
Approx 20 kg.
Direct From Factory Price :
Please Contact.
