AMPLIFIER

 SACThailand presents
K&S Audio Design
Single-Ended Stereo 2A3 Power Amplifier with Interstage coupling

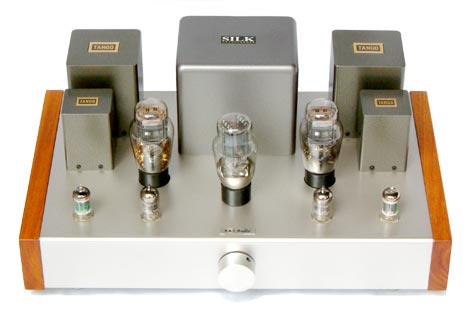

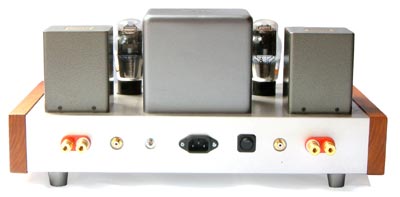

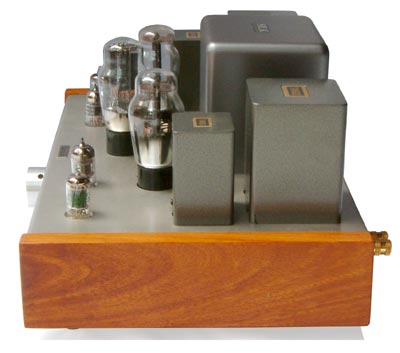

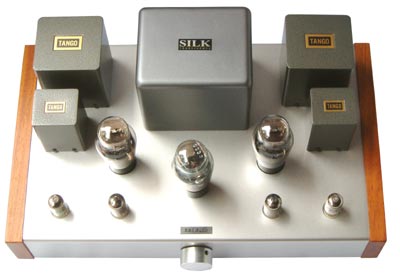

  Exterior: Solid hand finish cast aluminum chassis (very solid look and feel) couple with real hardwood sides for true classic look
Interior: Super high quality one would not find in any so called "hi-end' cause hi- price tag" equipment. WKZ Rubycon Blackgate filter capacitor, Kiwame Carbon Film resistor, Audio Note Copper Foil/ paper-in-oil coupling capacitor, hand layered power transformer and choke, hand wiring, Tango Interstage coupling transformer, Tango C-Core output transformer etc.
Special: Capable of switching between 2A3 and 45 by one touch of the toggle
Result: One of the most musical, smooth, clear yet very dynamic, punchy, lifelike sound SE amplifier could do at any price.

.
Specification
Product Type:
Stereo Vacuum Tube Power Amplifier with Interstage
Pre-Amp/Input Tubes:
6N1P x 2
Driver Tubes:
5687 x 2
Output Tubes:
Electro-Harmonix 2A3 Gold x 2
Rectifying Tubes:
5U4G x 1
Coupling Capacitors:
Audio Note Paper-in-oil Capacitor
Interstage Transformer
Tango NC-14
Output Transformer:
Tango XE-20S cut core 20 watts
Output Power:
3.7 watts/CH pure class A1 design, 5 watts peak power
Frequency Response:
20Hz(-0.6dB), 20,000Hz (-0.7dB)
THD:
3.7% at rated power
S/N ratio:
below 80dB
Size:
(W) 48 x (D) 33 x (H) 20 cm.
Weight:
Approx 25 kg.
Direct From Factory Price :
Please Contact.

Option Accessories

Cardas RCA/Binding Post
Cardas 6N Copper wiring
Gold Plate Furutech IEG Socket
High Grade Tube Sockets
BlackGate Power Supply Capacitors
